Physical

Size

16 hp width

Panel

2mm aluminium

Electrical

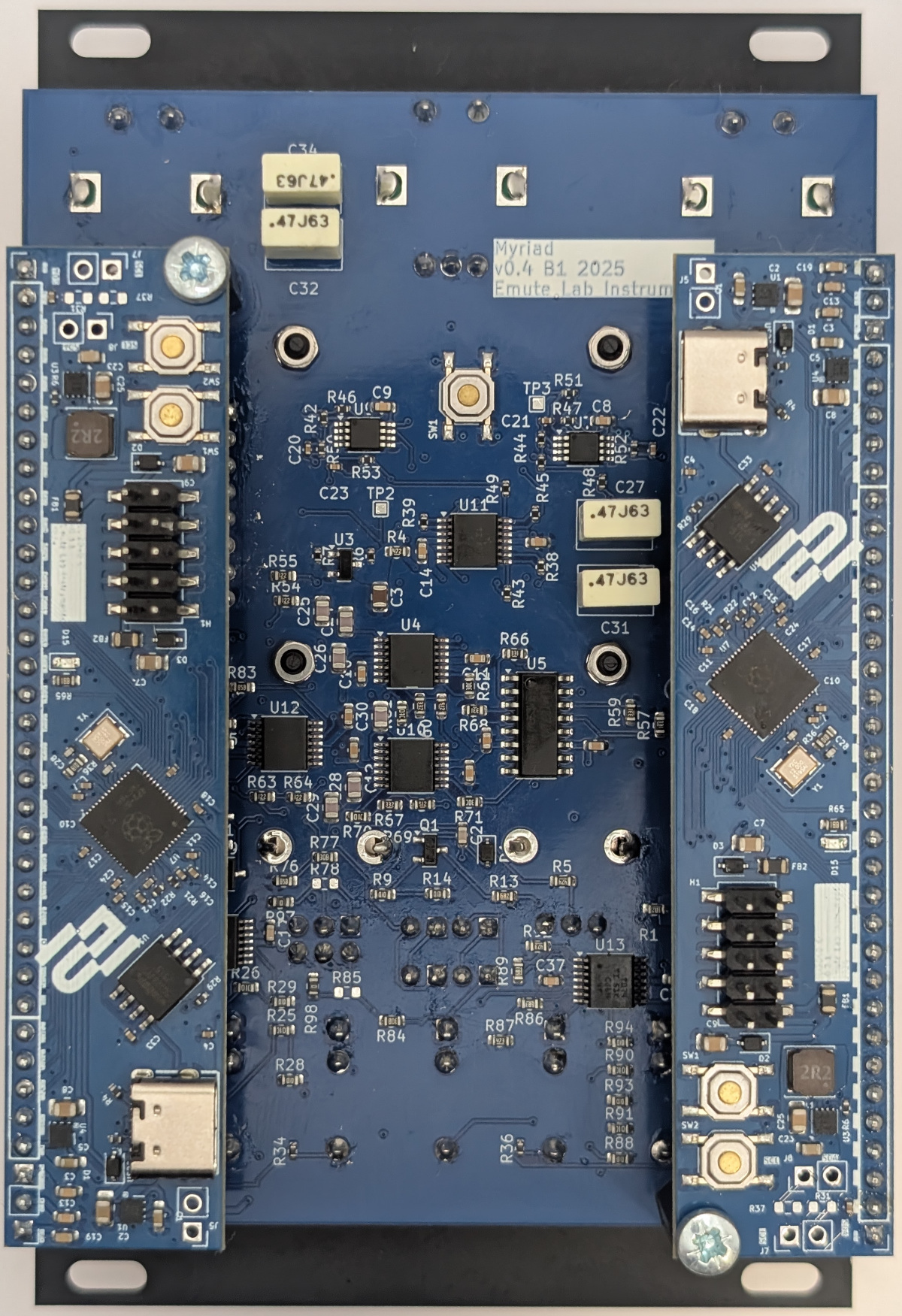

Myriad Back

Voltages

IO Voltage
VCA CV 0 - 5V
Other CV Inputs Sensitive to -5V - 5V range (clips outside this range)

Current

100 mA @ +12V, 30mA @ -12V

Power Connector

10 pin IDC

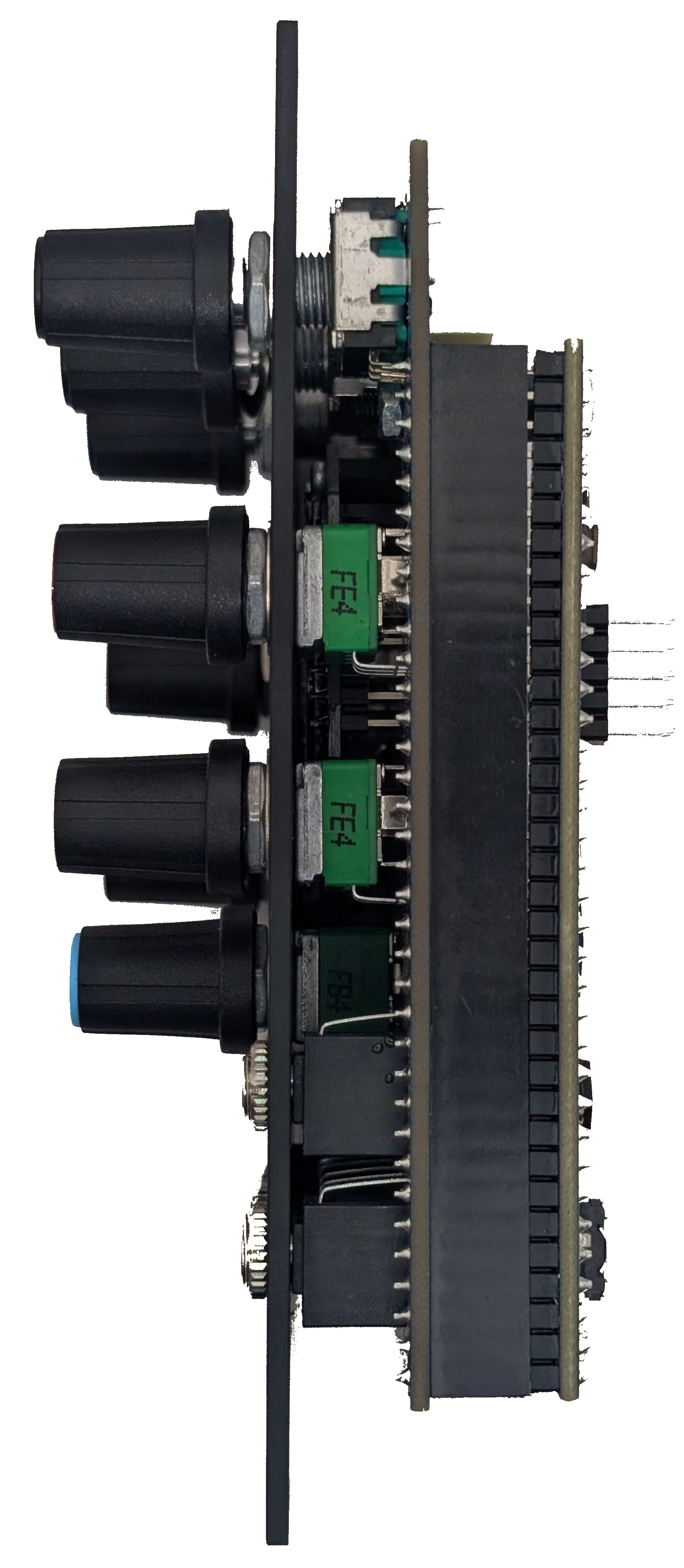

Myriad Side

Digital

Microcontrollers

Two ELI2040c boards, each with a dual core RP2040 processor running at 250 MHz

Analog / Digital Conversion

4 ADC inputs, 12-bit resolution
